FEATURES OF CNC HYDRAULIC PRESS
BRAKE – EHP SERIES

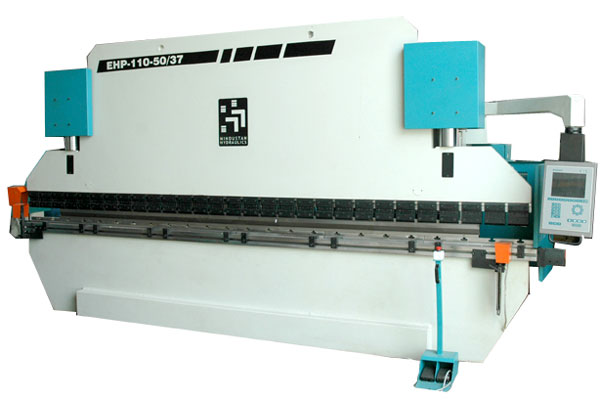

EHP series of CNC Press Brake has a
solid and rigid frame designed ensuring minimum deflection
even during full load
operation.
Design is based on Synchronized bed
reference principle (SBR) with Y1-Y2 beam control.
The position of the press beam is continuously
monitored by measuring system.
The measuring system consists of linear
glass scales mounted on separate sub “C” frame
fixed on the lower machine beam.
The electronic scales are fixed on either
side of the press beam, providing a continuous feedback to
the CNC unit regarding actual position of the press beam,
with respect to the table.
Machine offers press beam depth accuracy
of ±0.01 mm with high repeatability.
The parallelism between press beam and
table is maintained with electronic measuring system Y1-Y2.
Machine is with direct-angle programming
feature. Also is ideal for multiple – angle bending
in a particular profile.
With Y1-Y2 control the press beam can
be used with eccentric load, while bending short length jobs
off center of the machine. This is without affecting quality
or accuracy of machine
Due to use of proportional Hydraulics, the exact force required
for the job is calculated by the controller is exerted thereby
resulting in the power saving
Press beam tilting is available upto
±10 mm for the machine tonnage upto 110 ton and above
150 ton will be with ±2mm as standard features.
Machine structure parts are machined
in single set up ensuring very high accuracy on parallelism
between top beam & lower table over the entire bed length
and high perpendicularity accuracy over the entire stroke
length on upper beam movement with respect to the table length.
Machine is designed & manufactured
to ensure very precise backguage setting through out the length
across the backguage beam.
Machine offers vibration force movement
throughout the stroke length, even at extended dwell time
and increased / reduced speeds.
Machine can be adapted to different
type of tool design i.e. European design, low cost Japanese
design modifix design.
CNC Hydraulic Press Brake
* Capacity 50 ton to 1000 ton
* Working length 1500- 8000 mm.
|
